Power Blocks

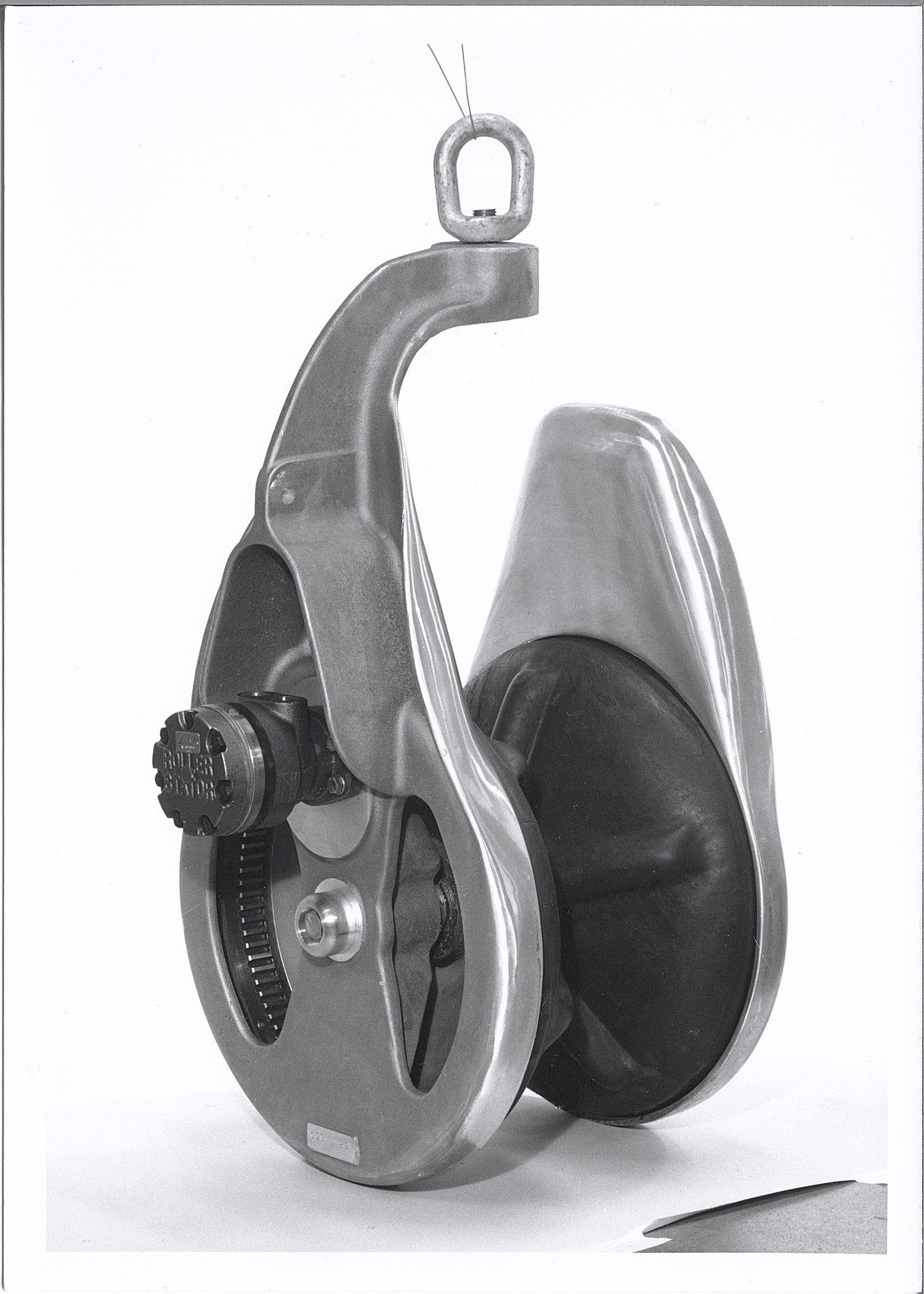

26" Power Block

FEATURES:
  • Open top design
  • Cast one piece hanging side for extra strength and safety
  • Cast aluminum construction
  • Aluminum sheave
  • Net speeds up to 75 rpm
AVAILABLE OPTIONS:
  • Replaceable rubber bolt-on or weld-on sheave cleats
  • Aluminum sheave cleats
  • Smooth sheave
  • Power gripper wheel
  • Power swivel
26 Inch Power Blocks
Dimension and Performance Data:
RE Hyd.Motor Size Net Pull * Sheave Speed Pressure & Flow
15.9 CI 4400 lb 55 rpm 2000 psi @ 25 gpm
12.4 CI Standard 3800 lb 75 rpm 2000 psi @ 25 gpm
* Net Pull based on 6" radius from center line of sheave.
Have question? Call us today at (360) 659-5415

20" Power Block

FEATURES:
  • Open top design
  • Cast one piece hanging side for extra strength and safety
  • Cast aluminum construction
  • Aluminum sheave
  • Net speeds up to 60 rpm
AVAILABLE OPTIONS:
  • Rubber sheave cleats
  • Aluminum sheave cleats
  • Smooth sheave
20 Inch Power Blocks
Dimension and Performance Data:
RE Hyd. Motor Size Net Pull * Sheave Speed Pressure & Flow
13.6 CI 4200 lb 47 rpm 2000 psi @ 20 gpm
12.4 CI Standard 4000 lb 57 rpm 2000 psi @ 20 gpm
* Net Pull based on 5" radius from center line of sheave.

15" Power Block

FEATURES:
  • Open top design
  • Cast one piece hanging side for extra strength and safety
  • Cast aluminum construction
  • Aluminum sheave
  • Net speeds up to 75 rpm
AVAILABLE OPTIONS:
  • Rubber sheave cleats
  • Aluminum sheave cleats
  • Smooth sheave
15 Inch Power Blocks
Dimension and Performance Data:
RE Hyd. Motor Size Net Pull Sheave Speed Pressure & Flow
24.9 CI Standard 1100 Ib 75 rpm 1500 psi @ 10 gpm
Have question? Call us today at (360) 659-5415

12" Power Block

FEATURES:
  • Open top design
  • Cast one piece hanging side for extra strength and safety
  • Cast aluminum construction
  • Aluminum sheave
AVAILABLE OPTIONS:
  • Rubber sheave, no cleats
  • Smooth sheave
12 Inch Power Blocks
Dimension and Performance Data:
RE Hyd. Motor Size Net Pull Sheave Speed Pressure & Flow
24.9 CI Standard 800 lb 52 rpm 1500 psi @ 5 gpm
