KAW Series Anchor Winches

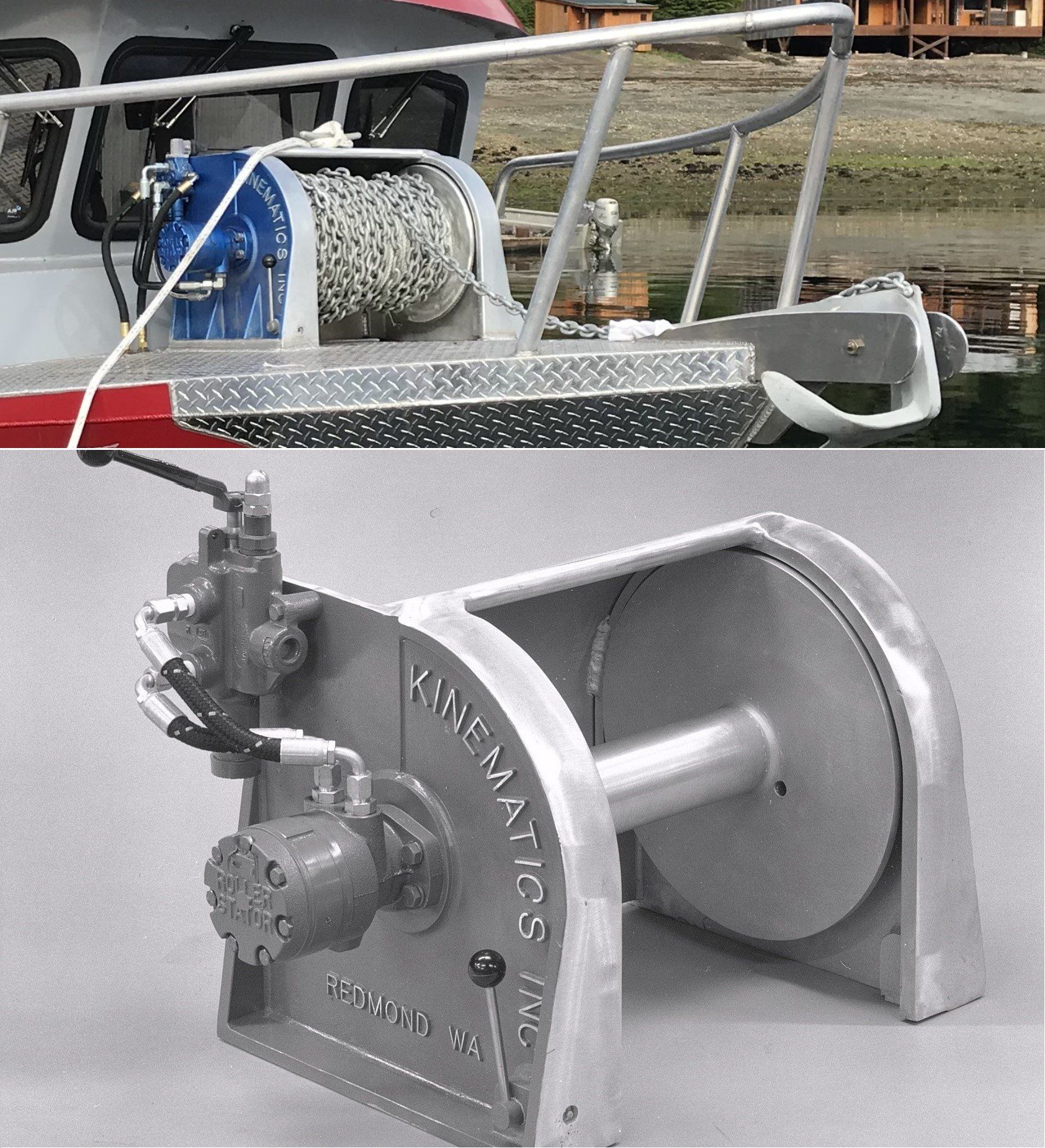

KAW-20 Series Aluminum
Anchor Winch

FEATURES:
  • Cast aluminum
  • Direct drive
  • Complete freewheeling
  • Stainless steel dog
  • Enclosed spool valve allows for power in, power out, free spool, and brake (rotary optional)
  • 4" diameter core
  • 20" diameter flange
  • RE 32 CI White/Danfoss hydraulic motor
  • Roquet control valve rated at 16 GPM and 2,200 PSI
  • All storage capacities are approximate
Anchor Winches — KAW-20 Series
KAW Winch No. KAW 20 x 16 KAW 20 x 18 KAW 20 x 20 KAW 20 x 22
Width Between Flanges 16" 18" 20" 22"
Approximate Line Pull
Pull @ 1800 PSI
3,100 lbs @ core
950 lbs @ full drum
3/8" Chain 75 feet 85 feet 95 feet 105 feet
3/8" 1,160 feet 1,300 feet 1,450 feet 1,600 feet
1/2" 680 feet 765 feet 850 feet 940 feet
5/8" 450 feet 500 feet 550 feet 620 feet
3/4" 325 feet 355 feet 400 feet 440 feet
UPGRADE OPTIONS:
  • Stainless steel core
  • Diamond screw levelwind
  • Band wheel break
  • 5-inch capstan with hydraulic motor
  • Rotary control valve
  • Hydraulic motor options
  • Custom widths
  • Custom finishes

KAW-16 Series Aluminum
Anchor Winch

FEATURES:
  • Cast aluminum
  • Direct drive
  • Complete freewheeling
  • Stainless steel dog
  • Enclosed spool valve allows for power in, power out, free spool, and brake (rotary optional)
  • 3.5" diameter core
  • 16" diameter flange
  • RE 24 CI White/Danfoss hydraulic motor
  • Roquet control valve rated at 16 GPM and 2,200 PSI
  • All storage capacities are approximate
Anchor Winch — KAW-16 Series Aluminum
KAW Winch No. KAW 16 x 10 KAW 16 x 16 KAW 16 x 18 KAW 16 x 20 KAW 16 x 22 KAW 16 x 24
Width Between Flanges 10" 16" 18" 20" 22" 24"
Approximate Line Pull
Pull @ 1800 PSI
2,700 lbs @ core
700 lbs @ full drum
3/8" Chain 60 feet 45 feet 50 feet 55 feet 60 feet 65 feet
3/8" 320 feet 832 feet 900 feet 1,000 feet 1,145 feet 1,250 feet
7/16" 240 feet 647 feet 705 feet 780 feet 862 feet 940 feet
1/2" 180 feet 503 feet 550 feet 605 feet 670 feet 730 feet
5/8" 125 feet 330 feet 360 feet 400 feet 440 feet 480 feet
3/4" 100 feet 235 feet 255 feet 282 feet 315 feet 340 feet
UPGRADE OPTIONS:
  • Stainless steel core
  • Diamond screw levelwind
  • Band wheel break
  • 5-inch capstan with hydraulic motor
  • Rotary control valve
  • Hydraulic motor options
  • Custom widths
  • Custom finishes

KAW-14 Series Aluminum
Anchor Winch

FEATURES:
  • Cast aluminum
  • Direct drive
  • Complete freewheeling
  • Stainless steel dog
  • Enclosed spool valve allows for power in, power out, free spool, and brake (rotary optional)
  • 3.5" diameter core
  • 14" diameter flange
  • 24 CI White/Danfoss hydraulic motor
  • Roquet control valve rated at 16 GPM and 2,200 PSI
  • All storage capacities are approximate
Anchor Winches — KAW-14 Series
KAW Winch No. KAW 14 x 14 KAW 14 x 16 KAW 14 x 18 KAW 14 x 20
Width Between Flanges 14" 16" 18" 20"
Approximate Line Pull
Pull @ 1800 PSI
2,250 lb @ core
640 lb @ full drum
3/8" Chain 30 feet 35 feet 42 feet 45 feet
3/8" Line 601 feet 620 feet 696 feet 774 feet
7/16" Line 408 feet 466 feet 525 feet 583 feet
1/2" Line 317 feet 362 feet 408 feet 453 feet
5/8" Line 208 feet 240 feet 267 feet 297 feet
UPGRADE OPTIONS:
  • Stainless steel core
  • Diamond screw levelwind
  • Band wheel break
  • 5-inch capstan with hydraulic motor
  • Rotary control valve
  • Hydraulic motor options
  • Custom widths
  • Custom finishes

KAW-12 Series Aluminum
Anchor Winch

FEATURES:
  • Cast aluminum
  • Direct drive
  • Complete freewheeling
  • Stainless steel dog
  • Enclosed spool valve allows for power in, power out, free spool, and brake (rotary optional)
  • 3.5" diameter core
  • 12" diameter flange
  • RS 18 CI White/Danfoss hydraulic motor
  • Roquet control valve rated at 16 GPM and 2,200 PSI
  • All storage capacities are approximate
Anchor Winch — KAW-16 Series Aluminum
Winch No. KAW KAW 12 x 12 KAW 12 x 14 KAW 12 x 16
Width Between Flanges 12" 14" 16"
Approximate Line Pull
@ 1800 PSI
2,000 lbs @ core
650 lbs @ full drum
3/8" Chain 24 feet 25 feet 28 feet
3/8" 325 feet 380 feet 434 feet
7/16" 245 feet 286 feet 327 feet
1/2" 190 feet 222 feet 254 feet
5/8" 125 feet 146 feet 166 feet
UPGRADE OPTIONS:
  • Stainless steel core
  • Diamond screw levelwind
  • Band wheel break
  • 5-inch capstan with hydraulic motor
  • Rotary control valve
  • Hydraulic motor options
  • Custom widths
  • Custom finishes

KAW-12 Series Aluminum
Anchor Winch

FEATURES:
  • Cast aluminum
  • Direct drive
  • Complete freewheeling
  • Stainless steel dog
  • Enclosed spool valve allows for power in, power out, free spool, and brake (rotary optional)
  • 3.5" diameter core
  • 12" diameter flange
  • 18 CI White/Danfoss hydraulic motor
  • See left side of page for options
  • Control valve rated at 16 GPM and ?PSI
  • All storage capacities are approximate
Anchor Winches — KAW-12 Series
KAW Winch No. KAW 12 x 12 KAW 12 x 14 KAW 12 x 16
Width Between Flanges 12" 14" 16"
Approximate Line Pull
Pull @ 1800 PSI
2000 lb @ core
650 lb @ full drum
3/8" Chain 24 feet 25 feet 28 feet
3/8" Line 325 feet 380 feet 434 feet
7/16" Line 245 feet 286 feet 327 feet
1/2" Line 190 feet 222 feet 254 feet
5/8" Line 125 feet 146 feet 166 feet



UPGRADE OPTIONS:
  • Stainless steel core
  • Diamond screw levelwind
  • Band wheel break
  • 5-inch capstan with hydraulic motor
  • Rotary control valve
  • Hydraulic motor options
  • Custom widths
  • Custom finishes
