Twister Drum Drives

Twister Planetary Drum Drive

Ideal for Powering Custom Winches and Net Reels

FEATURES:

  • Hydraulic Motor and 4/6-bolt drive flange included
  • 20,000 in-lb output torque with 14ci hydraulic Motor
  • 100 RPM output speed
  • Freewheeling clutch
  • Caliper disc brake
  • Cast aluminum housing
  • 6-8 GPM/1,800 PSI Recommended

AVAILABLE OPTIONS:

  • Keyed or splined drive shaft
  • Net reel support flange at bearing end
  • Corrosion Resistant Painted Hydraulic Motor


For Dependability and Quality for Over 40 years
Call Kinematics today at (360) 659-5415

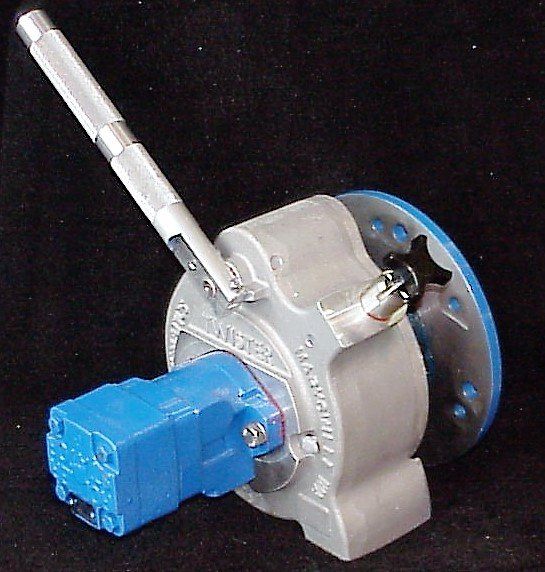

Twister Planetary Drum Drive

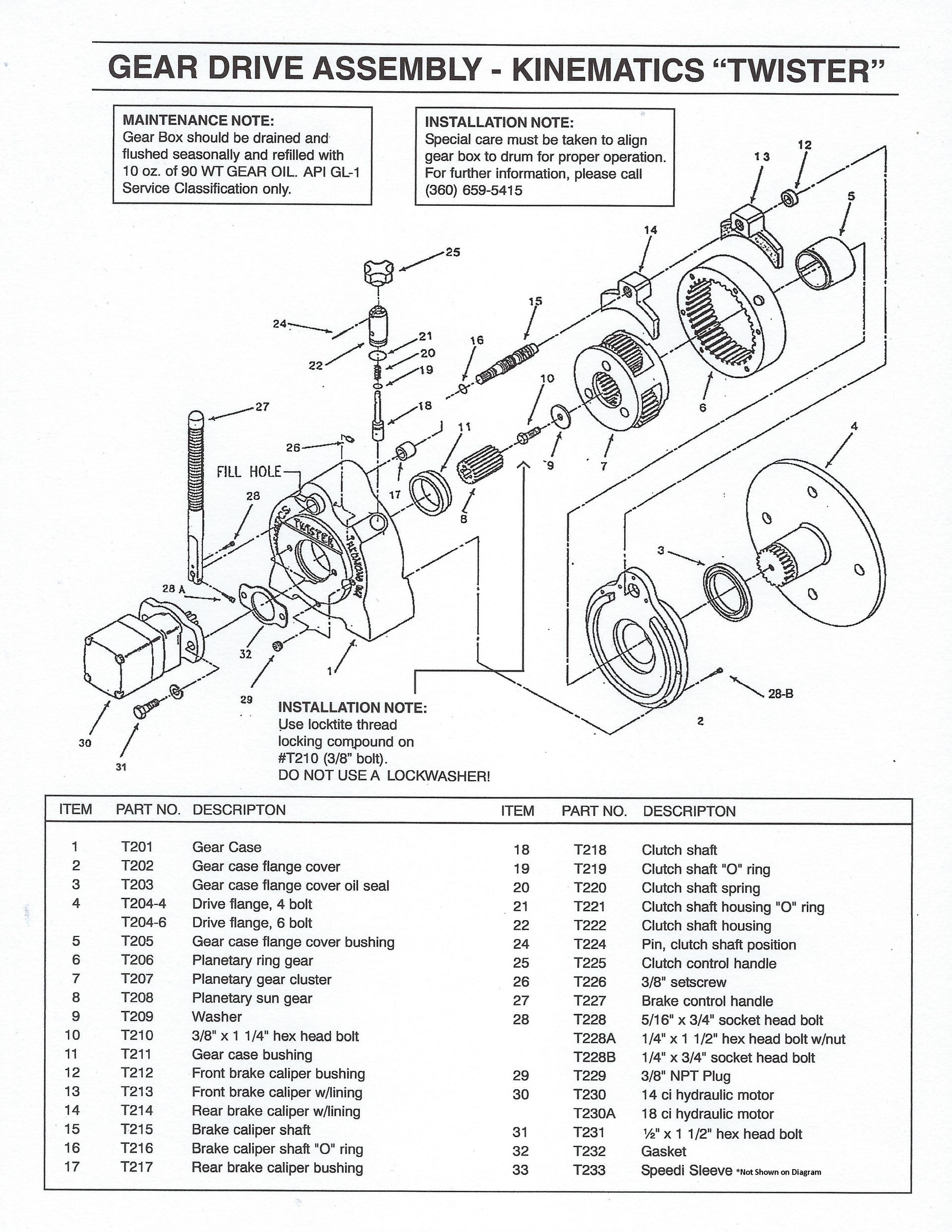

Twister Planetary Drum Drive Blueprint

Twister Wheel Drum Drive

Gives you the power you expect from a wheel drive and freewheeling that is the best of any wheel drive available. Hydraulic braking gives you the control you want and has port configuration that makes plumbing easy and uncluttered.

Additionally, the drive flange is configured for all standard 4- and 6-bolt pattern net drums. You can install this drive on any existing or new drum.

FEATURES:

  • Standard net drum 4/6-bolt drive flange included
  • 1875 ft-lb output torque
  • 1051.7 cc (64.18 CI) actual displacement
  • 170 RPM maximum continuous speed
  • 240 RPM maximum intermittent speed
  • 110 RPM freewheeling output speed
  • 70 RPM powered input/output speed
  • 22 GPM/2,500 PSI Recommended
  • Corrosion Resistant Paint

AVAILABLE OPTIONS:

  • Flame Spray Corrosion-Guard Paint


For Dependability and Quality for Over 40 years
Call Kinematics today at (360) 659-5415

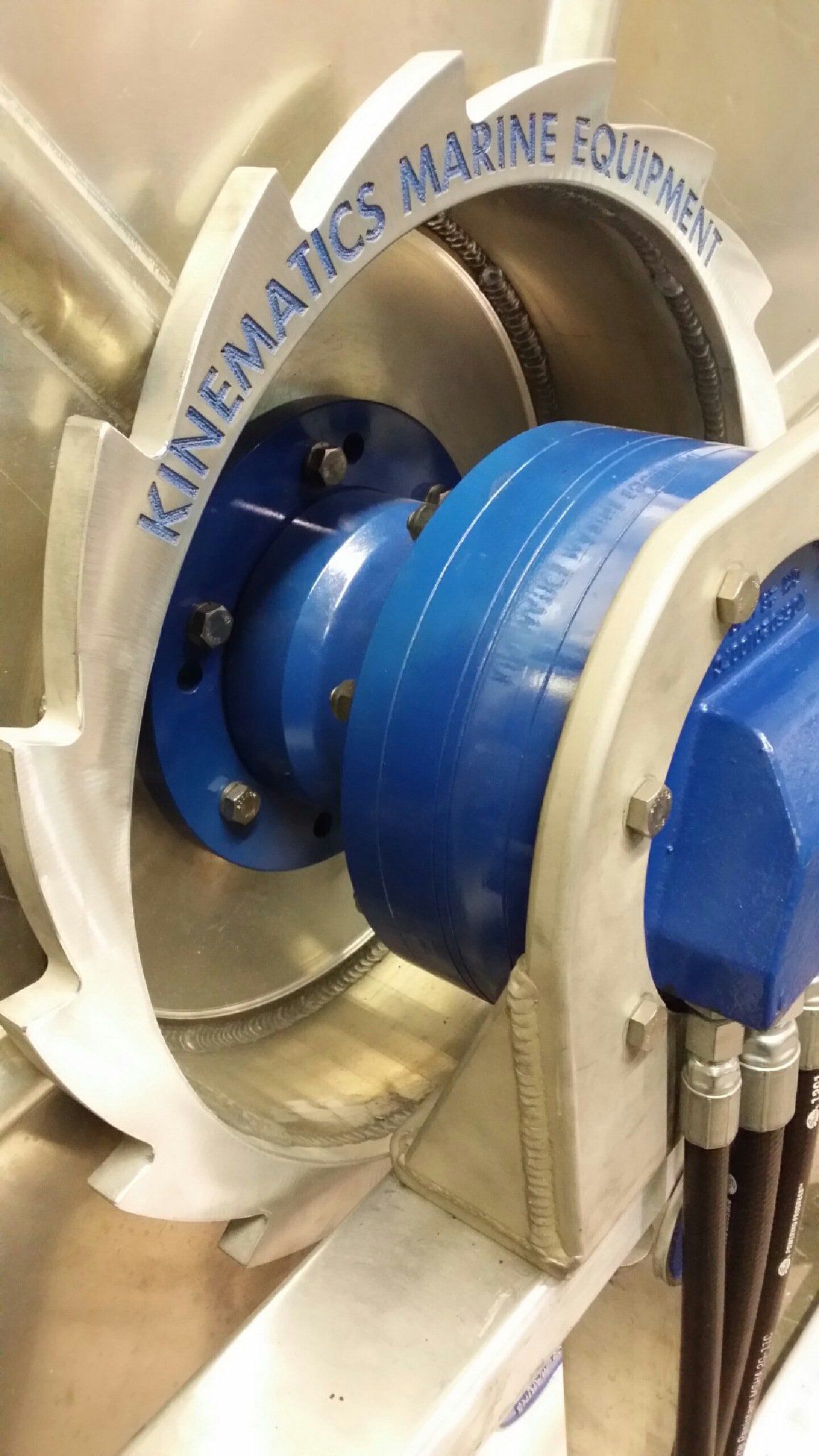

Twister Wheel Drum Drive

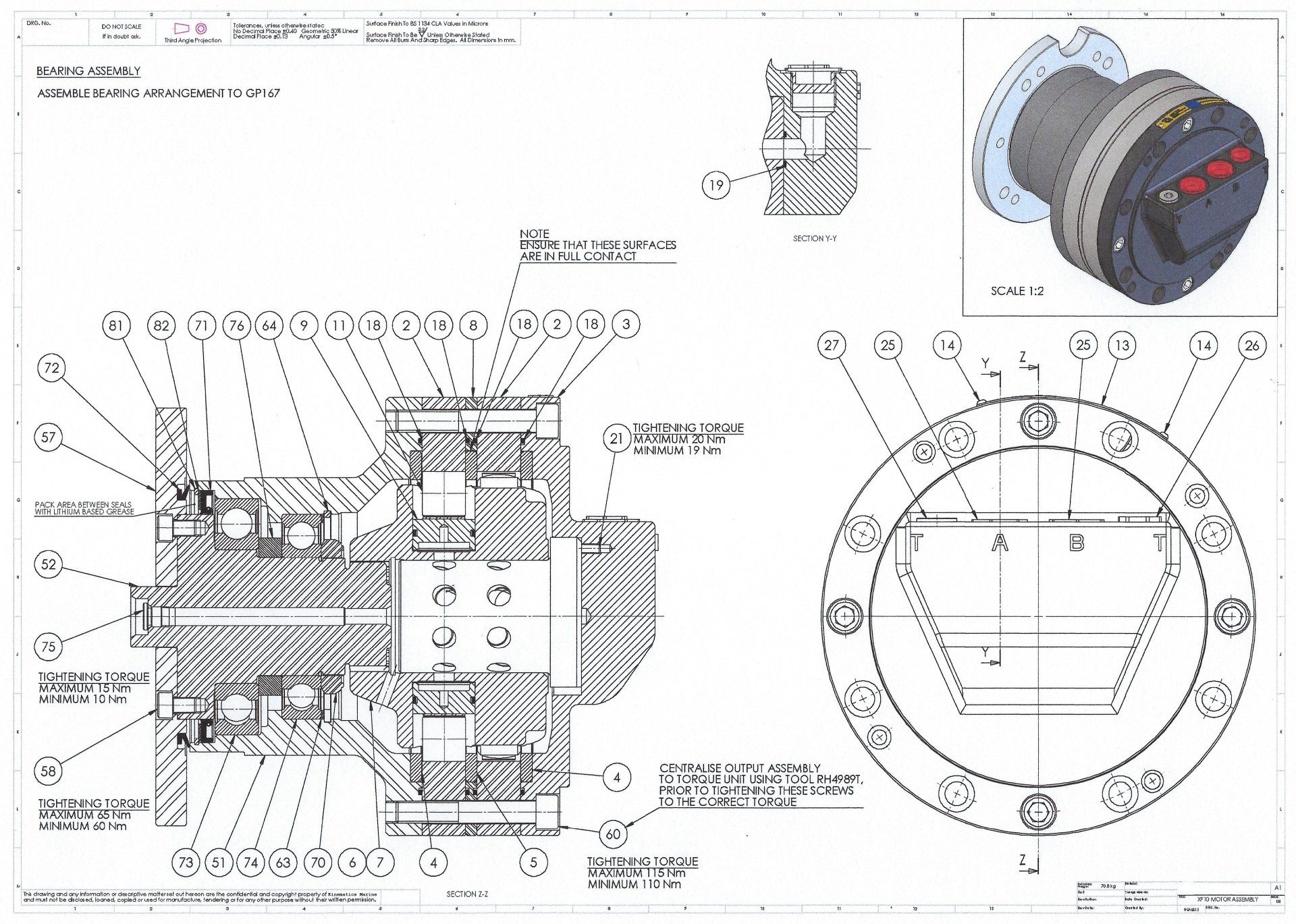

Twister Wheel Drum Drive Blueprint
